Description
dji goggles hdmi output Hawkeye Firefly HDMI Box for DJI FPV Goggles V2/V1Overview The Hawkeye Firefly HDMI Box is designed for DJI FPV Goggles V2 and V1. It converts the goggles Type C video stream to a 1080p60 HDMI output for FPV monitor screens, TVs, or HDMI capture display devices. Power it via USB 5V or a DC 36S battery, then share a live FPV view in real time. Key Features HDMI output at 1080P 60FPS for clear external viewing and recording Compatible with DJI FPV Goggles V1 and V2 Flexible power: USB 5V (@0. 3A) or DC
Overview

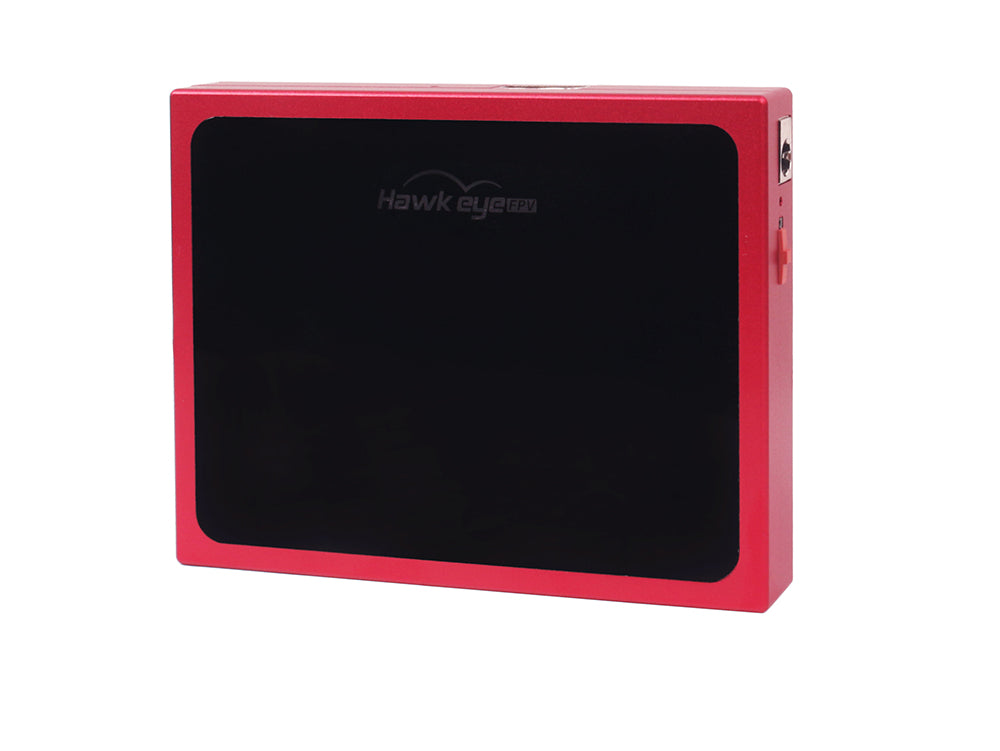

The Hawkeye Firefly HDMI Box is designed for DJI FPV Goggles V2 and V1. It converts the goggles’ Type-C video stream to a 1080p60 HDMI output for FPV monitor screens, TVs, or HDMI capture/display devices. Power it via USB 5V or a DC 3–6S battery, then share a live FPV view in real time.
Key Features
- HDMI output at 1080P 60FPS for clear external viewing and recording
- Compatible with DJI FPV Goggles V1 and V2
- Flexible power: USB 5V (@0.3A) or DC 3–6S battery (12V @0.12A)
- Accepts Type-C to Type-C or Type-C to USB data cables from the goggles
- Suitable for monitors, TVs, and HDMI capture devices for sharing or training
Specifications
| Output interface | HDMI |
| HDMI output | 1080P 60FPS |
| Video input | Type-C video stream from DJI FPV Goggles |
| Supported goggles | DJI FPV Goggles V1, V2 |
| Power (USB) | 5V @0.3A |
| Power (DC) | 3–6S battery, 12V @0.12A |
| Cable options | Type-C to Type-C or Type-C to USB |
Questions or support: https://rcdrone.top/ or [email protected].
Operation
- Power on the Air Unit and the HD Box, then power on the DJI goggles.
- After the image signal is received, connect the goggles to the HD Box with a USB data cable.
Notes
- In the goggles menu, set Auto temp control to Off; otherwise video output may stop after running for a while.
Applications
- Racing
- Education
- Sharing the live FPV feed on larger screens
Details
Set auto temp control to off to avoid video loss. Power Air unit, HD box, then goggles. Connect via USB. Supports 5V/0.3A or 12V battery, HDMI 1080P60FPS, Type C cables, V1/V2 goggles.
Hawkeye HDMI Box enables real-time FPV video sharing via Type C input, HDMI output. Supports indoor/outdoor power. Ideal for racing, education, and sharing experiences.
